Rendering

SOLIDWORKS Visualize allows designers to create presentation-ready, photorealistic renderings. CAD files can be opened directly in SOLIDWORKS and rendered using accurate textures, reflections, and lighting. This is a powerful feature used by most designers but is particularly useful for product designers as it allows them to demonstrate their final concept before going into production.

SOLIDWORKS Simulation

SOLIDWORKS Simulation allows designers to put their designs to the test, and quickly and accurately identify any flaws. The designer will be provided with highly accurate data, which means they can make changes to the design before a physical prototype is produced. Mechanical engineers can save a lot of time, money, and effort by identifying issues with their designs early in the process.

Intricate Evaluation

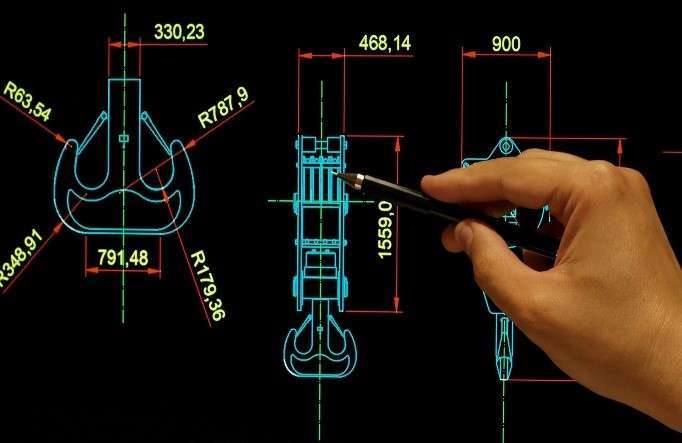

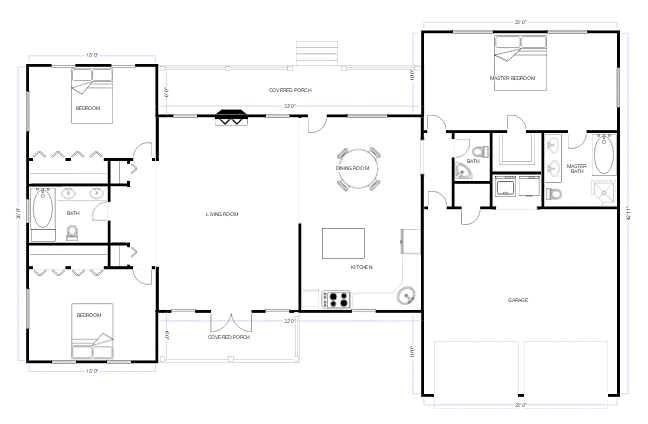

The Drawings tool allows a designer to quickly create 2D representations of any aspect of a design, with the option to add dimensions with the click of a button. This is useful for designers, engineers, and architects, offering the ability for a thorough evaluation.

Manufacture with Ease

Once the design is complete, and the designer has eliminated potential risks identified in the simulation and evaluation, a prototype can be made. SOLIDWORKS CAM produces the design files that can be sent straight to production. The software also includes a searchable database of 3D Printers generating 2D slice data from solid geometry, while the 3DEXPERIENCE Marketplace enables you to outsource prototype and part manufacturing from right inside the UI (User Interface).

Which Version of SOLIDWORKS Do You Need?

There are three available versions, and it’s important to consider each version before making your purchase.

SOLIDWORKS Standard

This is usually the first version of SOLIDWORKS those new to the software will use. It doesn’t include some of the features of the other two versions and focuses on core features such as parts, assemblies, and drawings.However, Standard still provides plenty of useful features that improve the designer’s experience. Standard includes add-ins, such as FeatureWorks, SimulationXpress, Interference Detection, 3D Interconnect, Treehouse, and Weldments. Each of these features helps designers improve their designs and speed up the process.

SOLIDWORKS Professional

SOLIDWORKS Professional includes all the same features that come with Standard, but with many additions that mean experienced designers can increase productivity and efficiency.Features included in Professional include Costing, Toolbox, TolAnalyst, Design Checker, Task Checker, and CircuitWorks. There’s also Visualize and Photoview 360, which are both invaluable for product designers.

SOLIDWORKS Premium

Included in Premium are all the features from Standard and Professional, as well as additional add-ins including Simulation, Routing, and Kinematic and Dynamic Motion Simulation. We recommend Premium for mechanical engineers as simulation tools can speed up the design and prototyping process.

What Are the Main Advantages of SOLIDWORKS?

While there are some potential disadvantages, the advantages of SOLIDWORKS by far outweigh any issues that a user may encounter. Below are just some of the main advantages of using SOLIDWORKS:

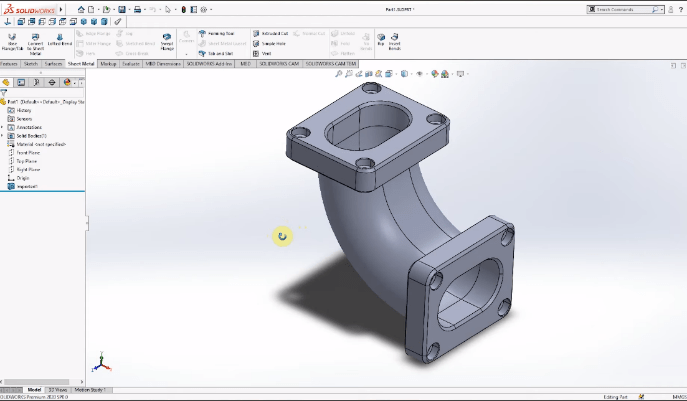

Easy to Learn

The biggest stumbling block new SOLIDWORKS users have is learning a brand new interface. However, there are SOLIDWORKS tutorials available to guide you through the interface, meaning those experienced with CAD and CAE should have no problems getting to grips with it. SOLIDWORKS helps new users by not throwing too much at them all at once, and has plenty of educational aids to allow learners to go at their own pace.

Product Data Management

SOLIDWORKS Product Data Management (PDM) stores your designs, engineering data and files in one central location. This allows you to:

• Retrieve files and data quickly
• Prevent data loss
• Monitor versions and track changes
• Integrate workflows
• Reduce time spent searching for drawings, parts and assemblies
• Increase efficiency and encourage design reuse
• The ability to share and collaborate

With a multi-user environment, multiple collaborators can access a design file at the same time with 3DEXPERIENCE. This means teams can make and track changes, view statuses and revisions all from withing the SOLIDWORKS platform.3DEXPERIENCE makes remote collaboration quick and simple, which is especially useful as more people turn to hybrid and remote working.

Easily Package Designs in 2D and 3D Formats

SOLIDWORKS makes it quick and simple to share designs in 2D or 3D formats, meaning you can get instant feedback and continue to work on your designs.Designs can even be shared as 3D animations, which allows you to accurately demonstrate new products and features.

Automation Made Easy

Save time, money and energy by allowing SOLIDWORKS to automate part of the process. SOLIDWORKS can automate dimensioning of 3D CAD models, set certain rules and parameters to speed up duplication for creating design variations.

Detect Potential Issues Early

SOLIDWORKS can detect potential flaws in your design, telling you if there will be stress, vibration, deflection or other issues. Because SOLIDWORKS can detect these early in the design process, it allows you to make adjustments and corrections before moving on to the prototype phase.

Motion Analysis

Check how your design’s shape, size and materials cope against certain forces, such as weight and friction. SOLIDWORKS will even offer suggestions as to how you can improve your design to make it more efficient.With the advantages and disadvantages of SOLIDWORKS considered, it’s clear that there are far more advantages to using this incredible software than there are disadvantages.
